The Iconic VTEC: Honda's Engineering Marvel

Few sounds in the automotive world are as recognizable as the VTEC "whoomp." This sudden jump in tone and volume from a high-revving Honda engine has soundtracked some of the most legendary sports cars and, well, maybe your neighbor's modified Integra (no judgment!)

VTEC stands for Variable Valve Timing and Lift Electronic Control. It's a long-lasting and widely celebrated piece of engineering that optimizes performance in naturally aspirated engines. Let's delve into the history and mechanics of VTEC to understand its enduring appeal.

Honda and the Naturally Aspirated Engine

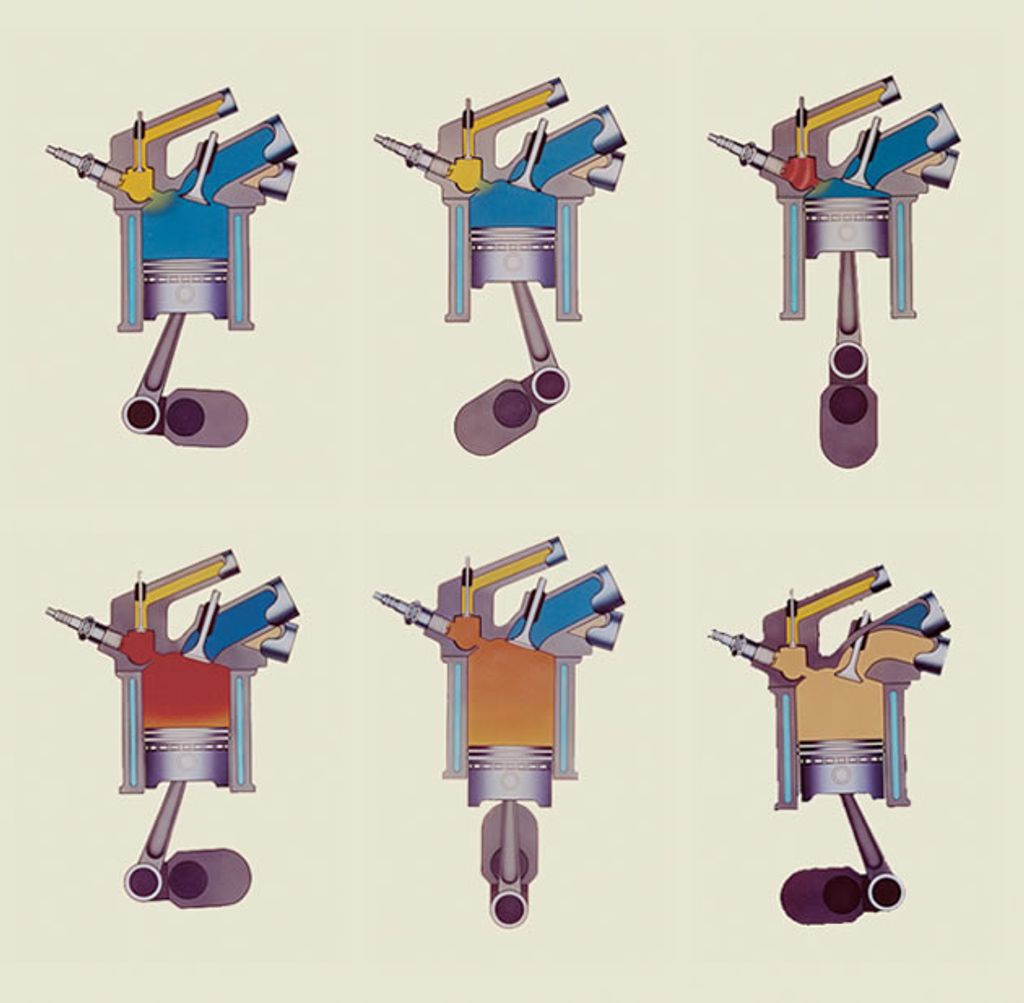

Honda has a long history of innovation in naturally aspirated engines. Their first major success story in the US was the introduction of Compound Vortex Controlled Combustion (CVCC) in 1974, during the OPEC oil crisis. This system used a pre-chamber to achieve more complete fuel burn, leading to greater efficiency for Honda's smaller engines compared to their American counterparts.

VTEC emerged from a similar desire for efficiency and performance. In the mid-80s, turbochargers were becoming increasingly popular for their ability to boost high-end power. However, they suffered from turbo lag and lower fuel efficiency. Honda wanted to maintain the responsiveness of naturally aspirated engines while offering comparable power to turbocharged ones.

The Challenge: Balancing Performance and Efficiency

In a high-performance naturally aspirated engine, airflow is crucial. Camshaft lobes control this airflow by opening the intake and exhaust valves. Longer cam lobes open the valves for a longer duration, allowing for more airflow into the combustion chamber. This is ideal for maximum power at high RPMs (redline).

However, this aggressive cam design comes with downsides at lower RPMs. The engine idles roughly, low-end performance suffers, and fuel consumption increases significantly. A milder camshaft can address these issues but sacrifices top-end power, which is a key advantage of naturally aspirated engines compared to turbocharged ones.

The VTEC Solution: Having Your Cake and Eating It Too

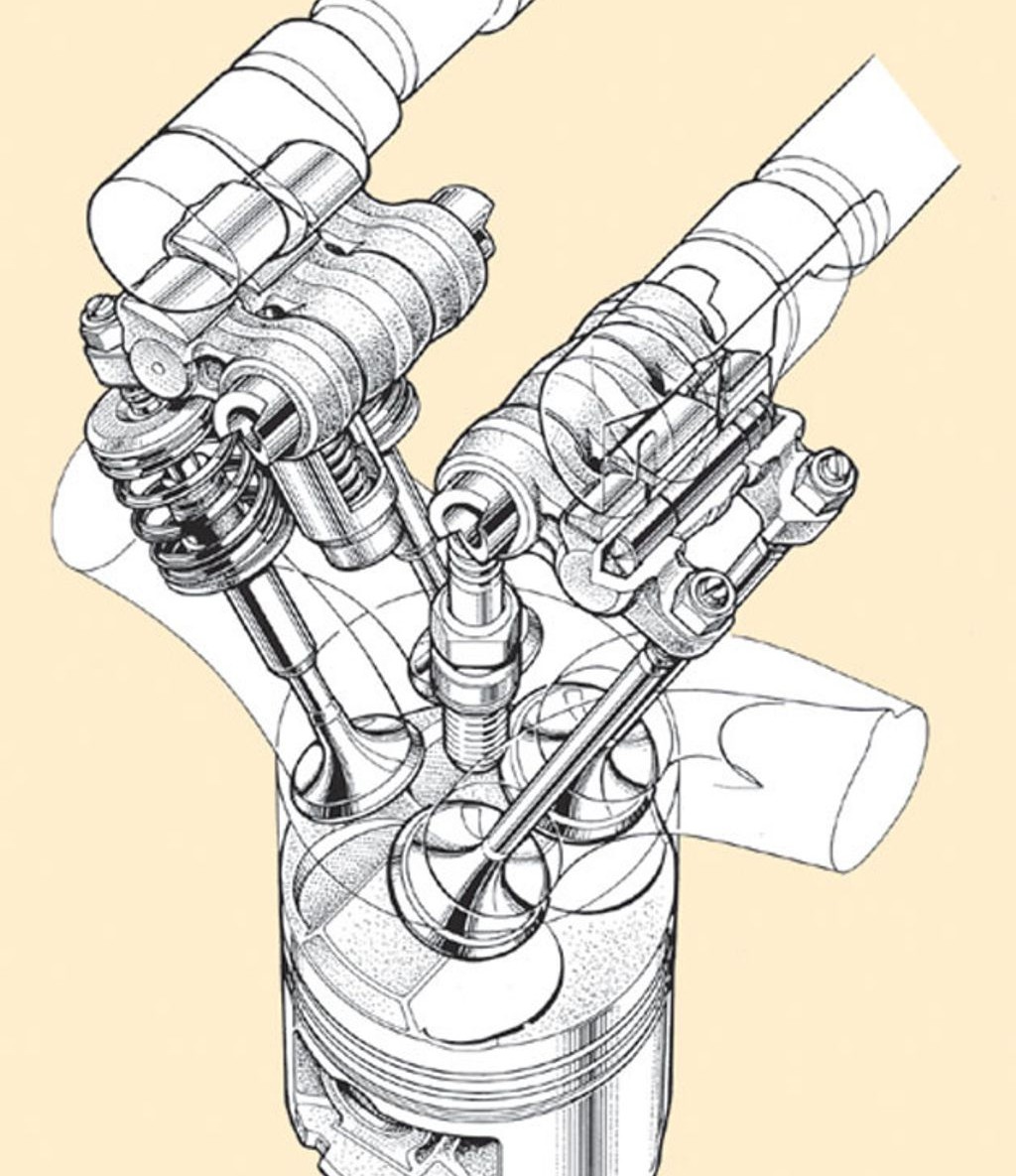

Honda's ingenious solution, introduced in the 1989 Integra (Japan), was a two-part camshaft. At low RPMs, a smaller, less aggressive cam lobe controls the valves. A larger, more aggressive lobe sits alongside it but doesn't make contact with the rocker arm.

At a specific high RPM, an electronic solenoid activates, allowing oil to flow into a channel within the camshaft. This oil pressure engages a mechanism that locks a secondary rocker arm under the aggressive cam lobe. This aggressive cam now dictates valve timing and lift, resulting in a significant boost in power. Once RPMs drop, the solenoid deactivates, and the engine reverts to the milder cam profile for better drivability.

The result? An engine with excellent everyday manners that transforms into a powerful beast at high revs. This innovative technology was showcased in the iconic 1995 Integra Type R, which generated a remarkable 200 horsepower from a mere 1.8-liter engine – unheard of for a naturally aspirated engine at the time. And of course, there's the unmistakable VTEC soundtrack that adds to the driving experience.

VTEC's Enduring Legacy

VTEC's beauty lies in its mechanical simplicity, allowing for combinations with other technologies. Honda's i-VTEC integrates variable valve timing with VTEC for even finer control over airflow. In the 2000s, they even developed a system with infinitely variable cam phasing alongside VTEC, although it never reached production.

As emissions regulations tightened, Honda shifted towards turbocharged engines in the past decade. However, their VTEC technology continues to evolve. In modern Honda turbocharged engines (VTEC Turbo), the variable cam timing is applied solely to the exhaust camshaft to improve turbo spool-up and eliminate lag. While this doesn't produce the classic VTEC sound, it has been praised for its responsive throttle and minimal turbo lag in cars like the Civic Type R.

The future of naturally aspirated engines remains uncertain. But one thing is clear: VTEC technology will continue to be a defining feature of Honda engines for years to come.
